Division: H (9-12)
School: Lyman High Team Size: 6

The Hotties

Lyman High

Members

  • Emit – HS Sophomore
  • Joshua – HS Sophomore
  • Victoria – HS Sophomore

Finished Cooker

Background Information

  • Lyman High has participated for the past 5 years in Energy Whiz
  • This is our first Energy Whiz competition
  • Recipe was inspired by the prominence of citrus all around Florida to represent local farms

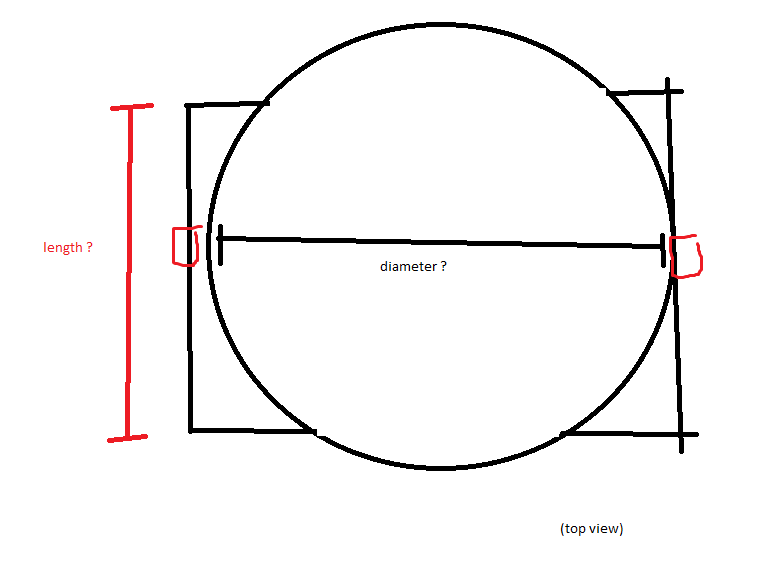

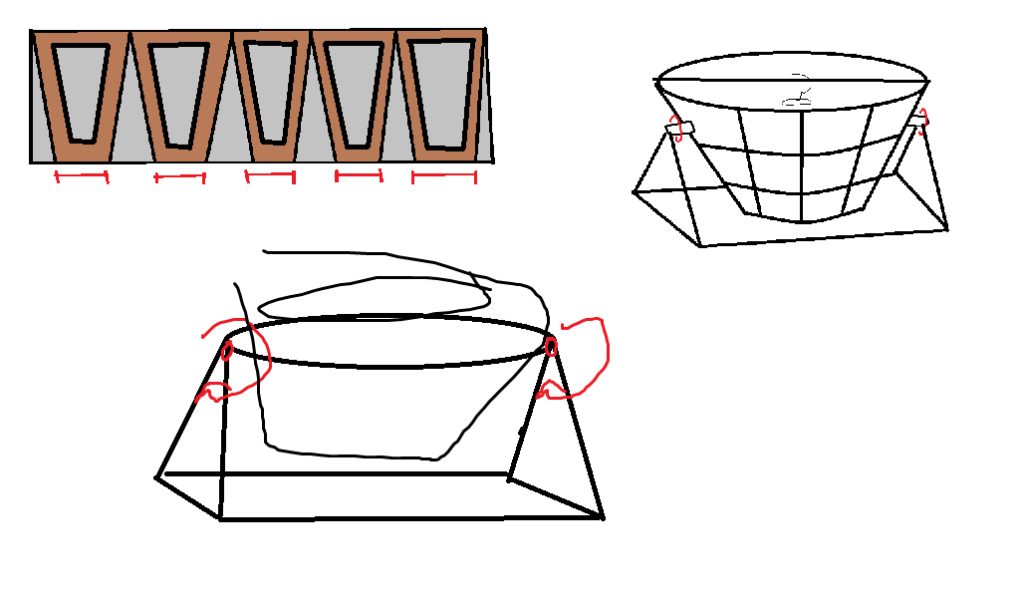

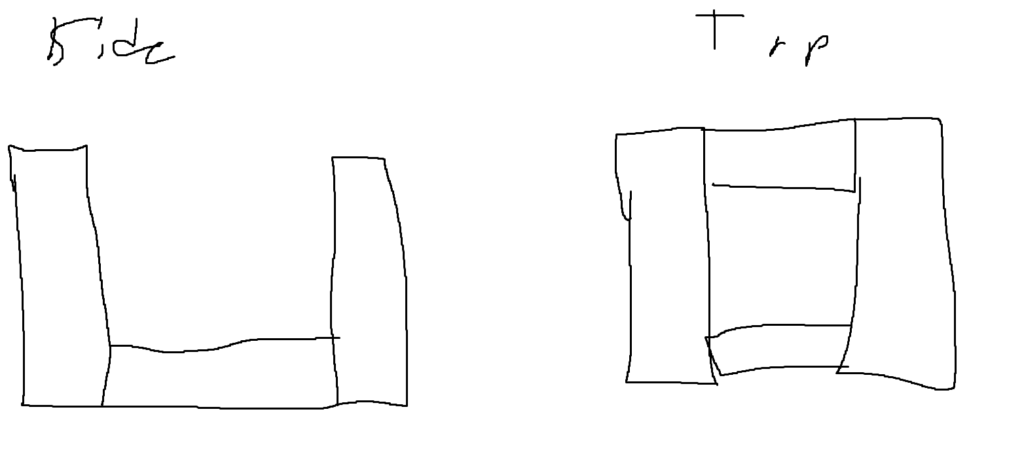

First Brainstorming Gallery

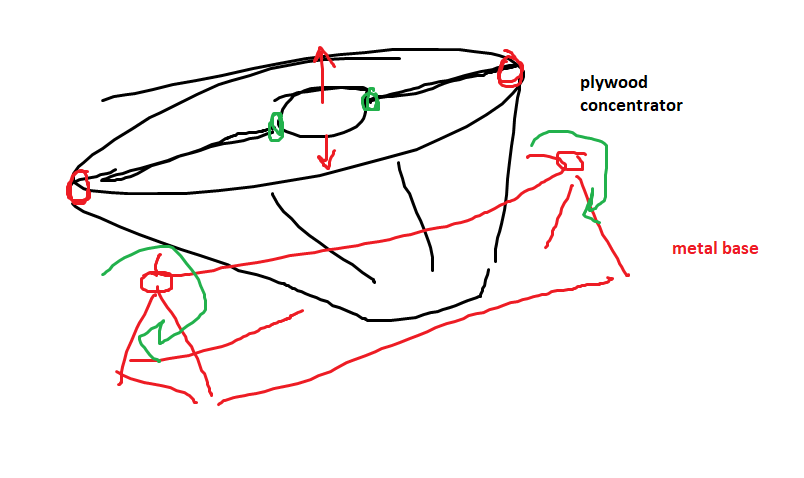

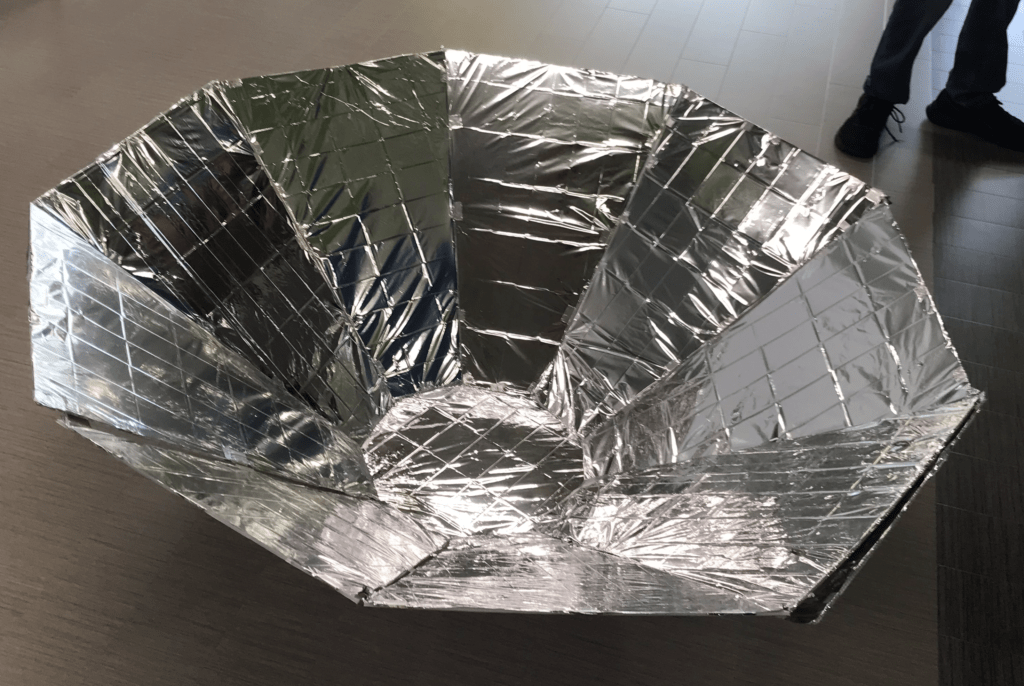

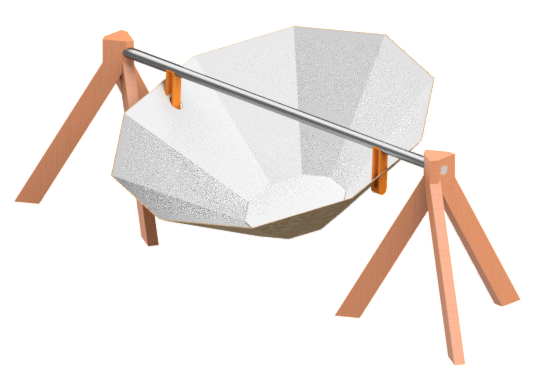

First design iteration

Original design, adjusted to make better use of materials.

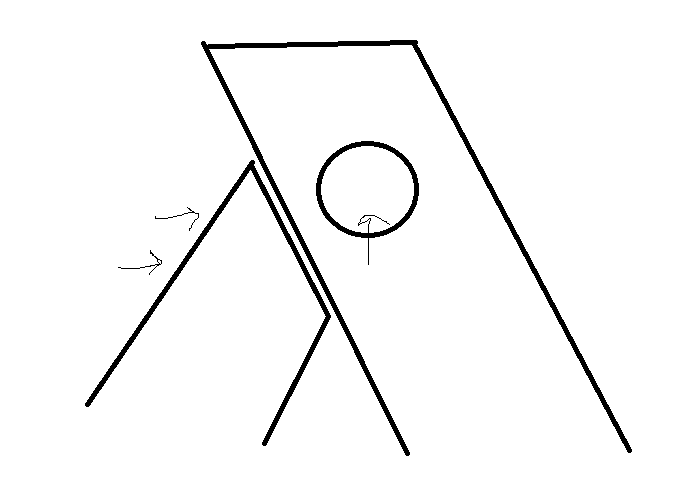

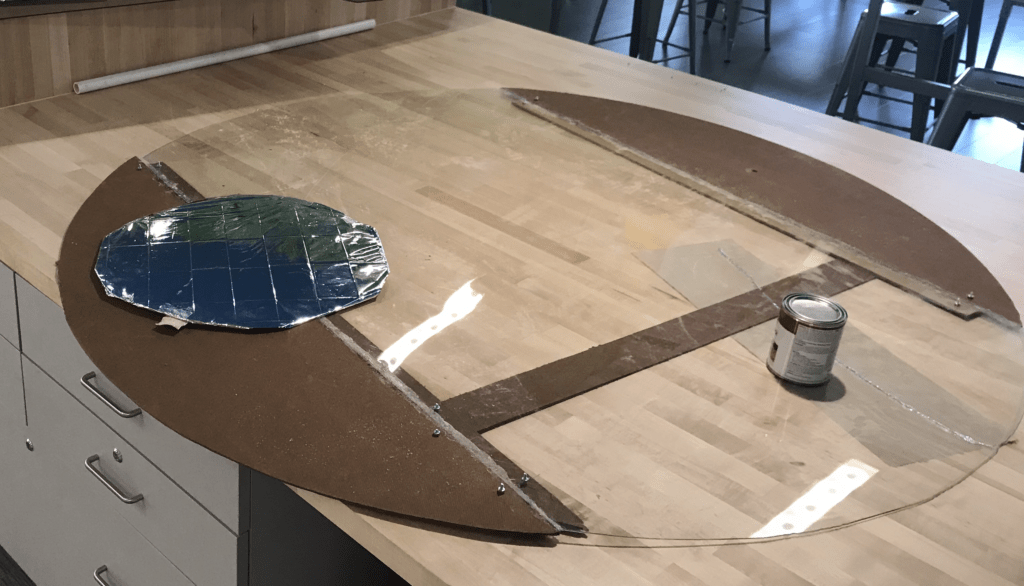

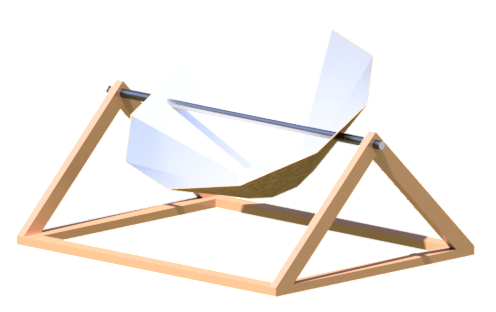

Final Revised Design

Revised design, now more efficient and portable.

Outside Help

  • Home depot staff:
    • Cutting Weathershield
    • Cutting Acrylic
  • Recipe inspiration for Mojo Shrimp
  • Tools:
    • Dremel
    • Jigsaw
    • Box Cutter
    • Drill

Design Video

Ideas

Our design was inspired by several cookers we found online. After looking through our options, we’d narrowed our list down to parabolic, box, or “hybrid.” We decided to go with parabolic as it seemed to take the most light in and trap the most heat possible. We wanted to suspend it so we could angle it to the sun and in order so after modeling a view designs, we had decided on our current design, suspended on a PVC tripod help on a longer pipe. To trap heat and maximize efficiency we used a sheet of reused acrylic bordered with the Weather Shield blend board.

Materials

  • Screws
  • Nuts
  • Cord
  • Metal pot

Parts

  • Weathershield
  • Acrylic
  • Rope
  • Food-Safe Sealant
  • PVC pipe
  • Corrugated Plastic Board
  • Cooking Pot

Mojo Shrimp Recipe

Cooked

  • Shrimp
  • Oranges
  • Lemon
  • Salt
  • Chili pepper
  • Olive oil
  • Garlic
  • Paprika
  • Zucchini
  • Onion
  • Cherry tomato
  • Rice

Not Cooked

  • Sesame Oil
  • Cilantro

Results

On 4/23, in a wide field and clear sky, our cooker reached a total of 257 degrees Fahrenheit located of the focal point
